2:1 Ultra Thin Wall Heat Shrink Tube
Thin wall heat shrink tubes are much thinner than standard wall heat shrink, with lower shrink temperature and faster-shrinking speed, but keep the same functions. It is ideal for connector protection in high-density spaces and reduces the damage to temperature-sensitive components when heating.
| Part No. : | MJ-HST-T |
|---|---|
| Material: | Polyolefin |
| Working Temperature: | -55℃ to 125℃ |
| Shrink ratio: | 2:1 |
| Start Shrink Temperature: | 70℃ |
| Minimum Complete Shrink Temperature: | 110℃ |
| Flammability: | VW-1 |
| Standard Color: | Black |
| Longitudinal shrinkage | 5% |
| Certification: | ROHS, Reach, UL, Halogen Free |

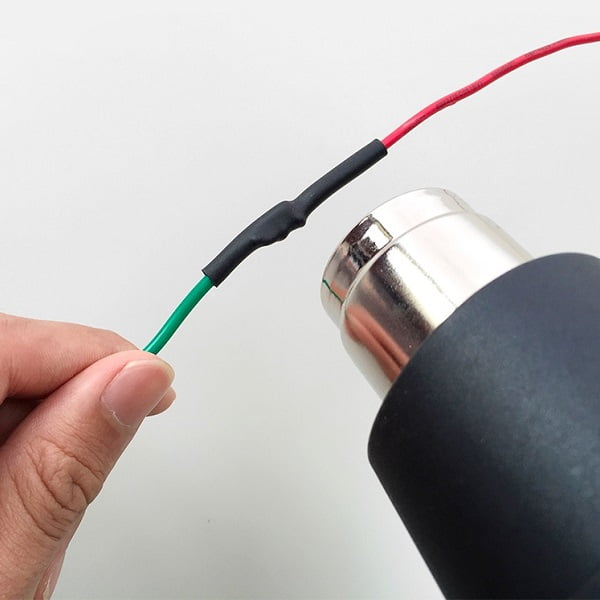

| Shrinking Tool: | Hot Gun |
| Cutting Tool: | Scissor |
| Size: | 1mm~150mm |

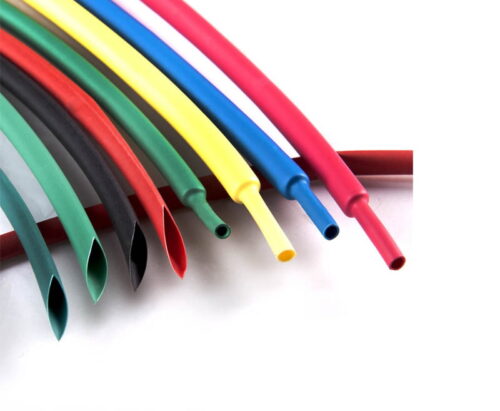

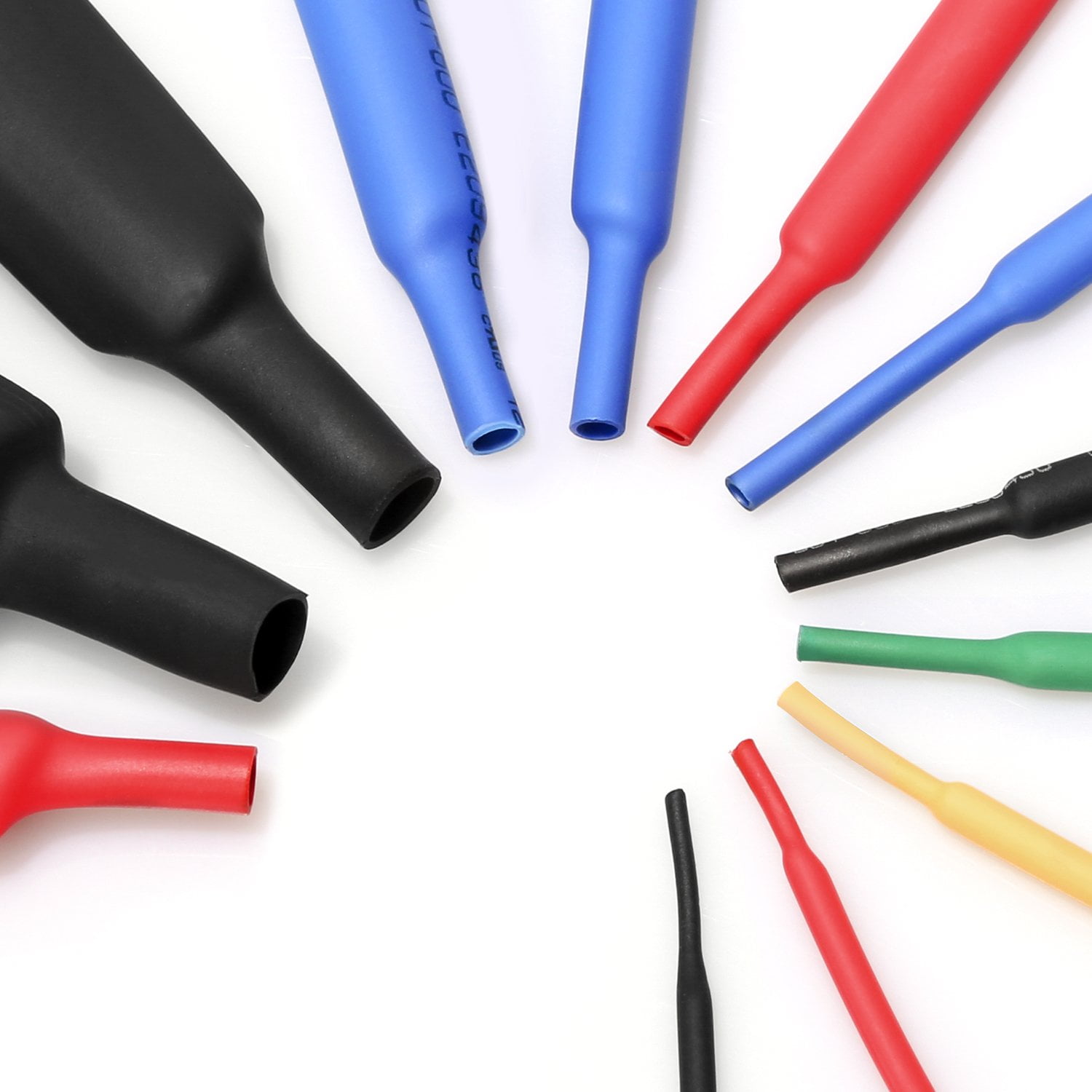

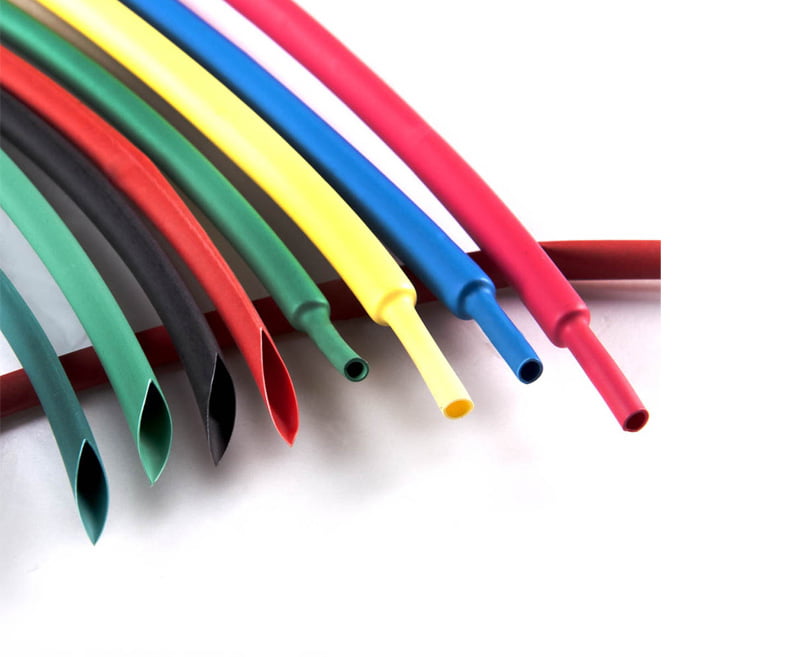

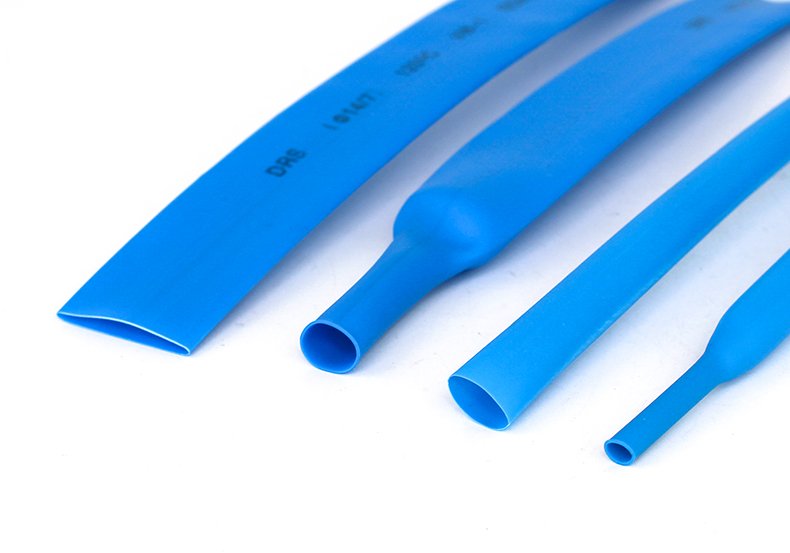

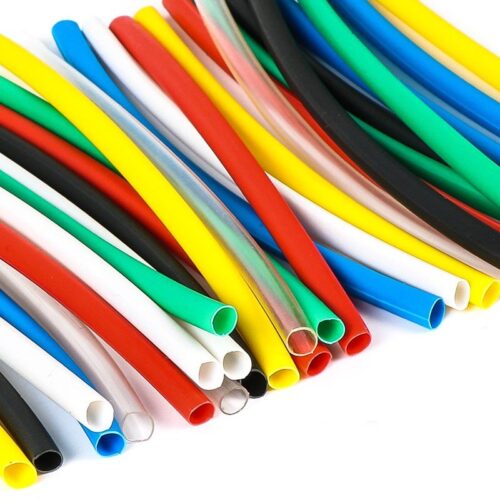

Ultra-thin wall heat shrink sleeves made from polyolefin, with a 2:1 shrink ratio. The heat shrink sleeves have excellent physical, chemical, and electrical performance. Available in different sizes and colors.

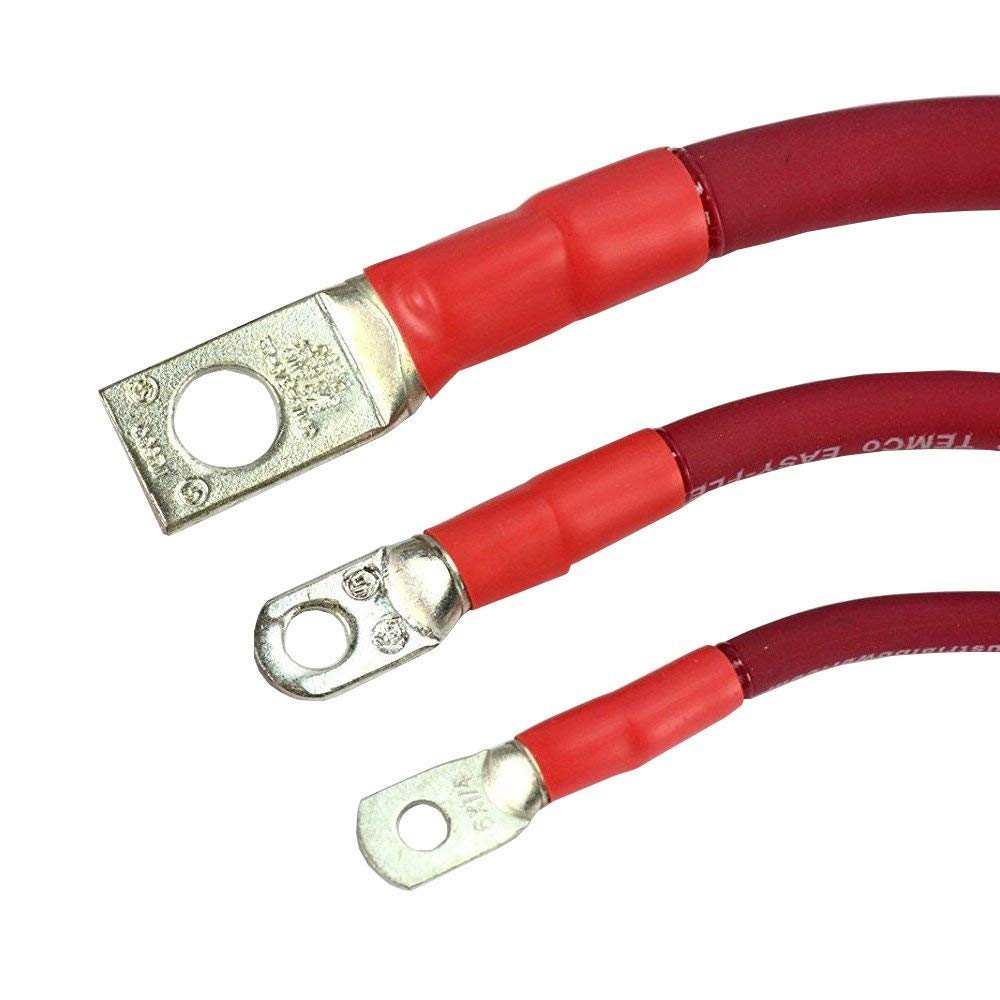

Thin wire insulation heat shrink tubing is designed to be split resistant, cold flow resistant, mechanically tough, and easily marked. It is typically used as shrink-fit electrical insulation over cable splices and terminations. It is also used for lightweight wire-harness covering, wire marking, wire bundling, component packaging, and fire-resistant covering.
Application
Thin wall wire sleeve heat shrink is ideal for a wide range of applications like electrical insulations, mechanical protection, and marking, like electrical insulation, wire bundling, color coding, lightweight harnessing, and wire strain relief.
Specification

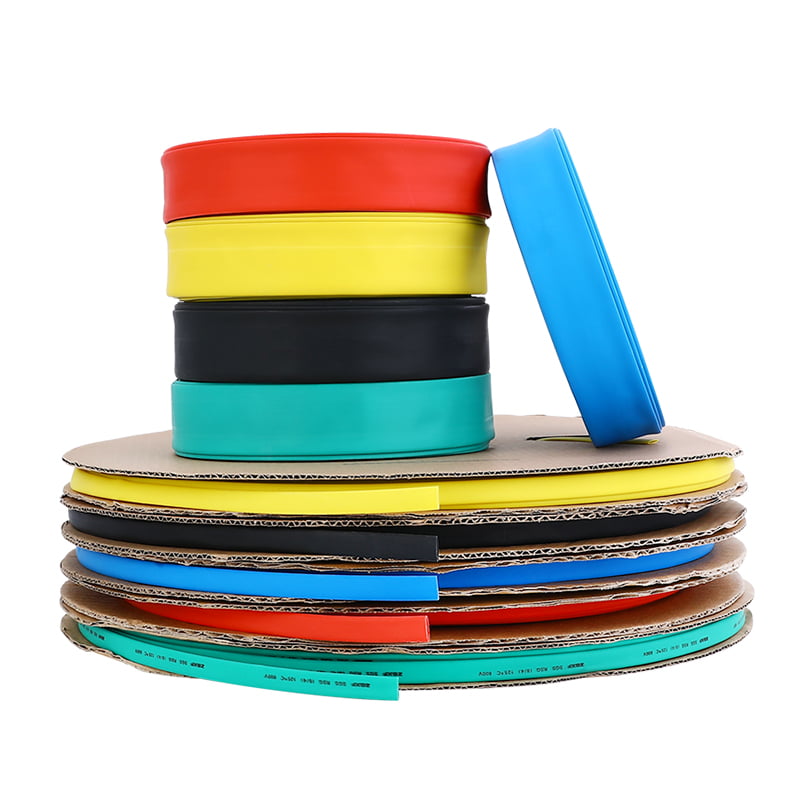

| PART NO | UNSHRINK SIZE(MM) | SHRINK RATIO | AFTER SHRUNK SIZE(MM) | PACKING LENGTH | ||
| DIA(D) | THICKNESS(T) | DIA(d) | THICKNESS(t) | |||
| MJ-HST-T-1.0 | 1.50±0.3 | 0.12±0.05 | 2:1 | ≦0.65 | 0.20±0.10 | 400m/spool |
| MJ-HST-T-1.5 | 1.90±0.3 | 0.13±0.05 | ≦0.85 | 0.20±0.10 | 400m/spool | |
| MJ-HST-T-2.0 | 2.35±0.3 | 0.15±0.05 | ≦1.00 | 0.22±0.10 | 400m/spool | |
| MJ-HST-T-2.5 | 2.80±0.4 | 0.15±0.05 | ≦1.30 | 0.25±0.10 | 400m/spool | |
| MJ-HST-T-3.0 | 3.40±0.4 | 0.15±0.05 | ≦1.50 | 0.28±0.10 | 400m/spool | |
| MJ-HST-T-3.5 | 3.80±0.4 | 0.15±0.05 | ≦1.80 | 0.28±0.10 | 400m/spool | |
| MJ-HST-T-4.0 | 4.40±0.4 | 0.18±0.05 | ≦2.00 | 0.35±0.10 | 400m/spool | |
| MJ-HST-T-4.5 | 4.70±0.4 | 0.18±0.05 | ≦2.30 | 0.35±0.10 | 200m/spool | |
| MJ-HST-T-5.0 | 5.50±0.4 | 0.18±0.05 | ≦2.50 | 0.37±0.10 | 200m/spool | |
| MJ-HST-T-6.0 | 6.50±0.4 | 0.20±0.05 | ≦3.00 | 0.39±0.10 | 200m/spool | |
| MJ-HST-T-7.0 | 7.50±0.4 | 0.18±0.05 | ≦3.50 | 0.32±0.10 | 200m/spool | |
| MJ-HST-T-8.0 | 8.50±0.5 | 0.18±0.05 | ≦4.00 | 0.32±0.10 | 200m/spool | |
| MJ-HST-T-9.0 | 9.50±0.5 | 0.18±0.05 | ≦4.50 | 0.35±0.10 | 200m/spool | |
| MJ-HST-T-10.0 | 10.50±0.5 | 0.18±0.05 | ≦5.00 | 0.35±0.10 | 200m/spool | |
| MJ-HST-T-11.0 | 11.50±0.5 | 0.18±0.05 | ≦5.50 | 0.40±0.10 | 200m/spool | |
| MJ-HST-T-12.0 | 12.50±0.5 | 0.20±0.05 | ≦6.00 | 0.40±0.10 | 200m/spool | |
| MJ-HST-T-13.0 | 13.50±0.5 | 0.20±0.05 | ≦6.50 | 0.40±0.10 | 200m/spool | |
| MJ-HST-T-14.0 | 14.50±0.5 | 0.20±0.05 | ≦7.00 | 0.40±0.10 | 200m/spool | |
| MJ-HST-T-15.0 | 15.50±0.5 | 0.20±0.05 | ≦7.50 | 0.40±0.10 | 200m/spool | |
| MJ-HST-T-16.0 | 16.50±0.5 | 0.22±0.05 | ≦8.00 | 0.40±0.10 | 200m/spool | |
| MJ-HST-T-18.0 | 18.50±0.5 | 0.22±0.05 | ≦9.00 | 0.45±0.10 | 200m/spool | |
| MJ-HST-T-20.0 | 20.50±0.5 | 0.22±0.05 | ≦10.00 | 0.45±0.10 | 200m/spool | |
| MJ-HST-T-22.0 | 22.80±0.5 | 0.22±0.05 | ≦11.00 | 0.45±0.10 | 200m/spool | |
| MJ-HST-T-25.0 | 25.50±0.5 | 0.22±0.05 | ≦12.50 | 0.45±0.10 | 200m/spool | |
