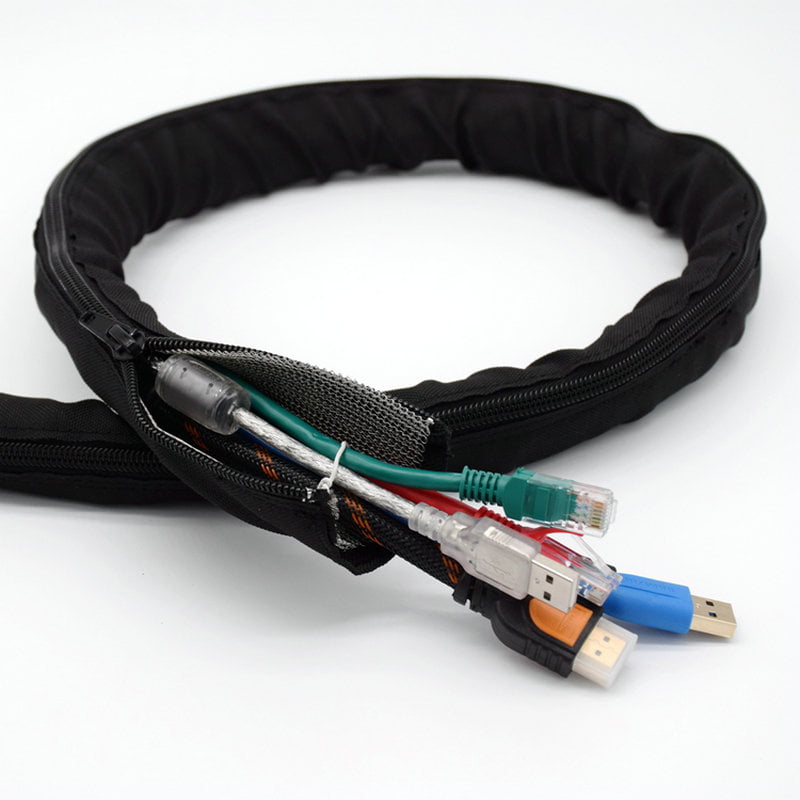

EMI Zipper Shielding Cable Sleeve
EMI zipper shielding cable tidy sleeve made of a highly-flexible tinned copper shielding mesh using an internal shield overlap, a grounding strap, and a heavy-duty zipper wrap. It is not only providing excellent EMI shielding but also could anti-noisy, flame-retardant and anti-abrasion.
| PART NO.: | MJ-ZECW |
|---|---|
| MATERIAL: | Polyester+Nylon zipper+copper foil mesh |
| WORKING TEMPERATURE: | -40℃ to 125℃ |
| MELT POINT: | 240±10℃ |
| FLAMMABILITY: | DIN5510,EN45545 |
| STANDARD COLOR: | Black |
| ZIPPER LIFE | 3000+ |
| CERTIFICATION: | ROHS |
| SIZE: | 16mm~60mm ID |

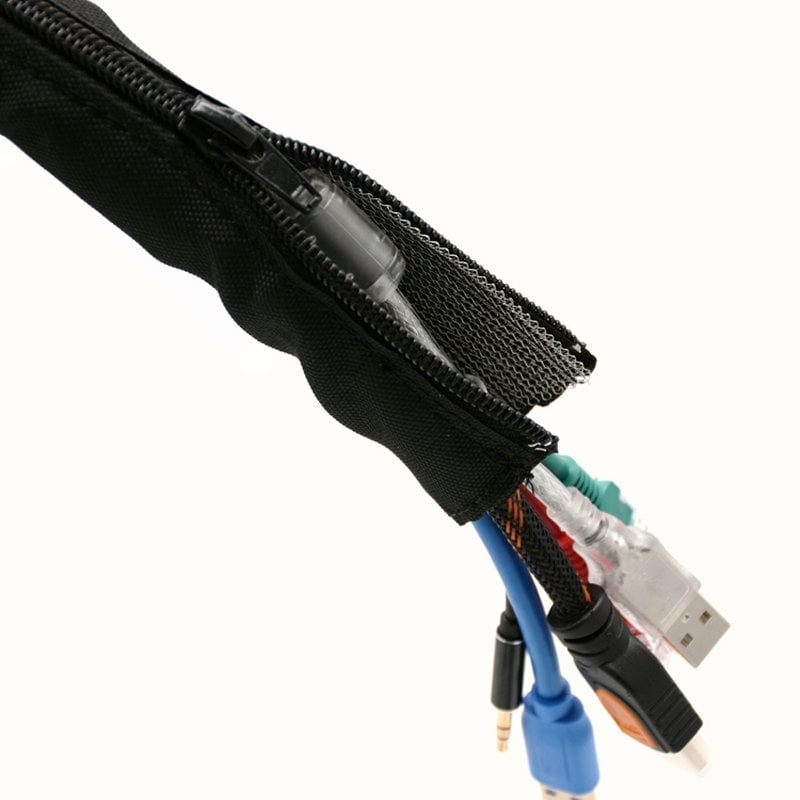

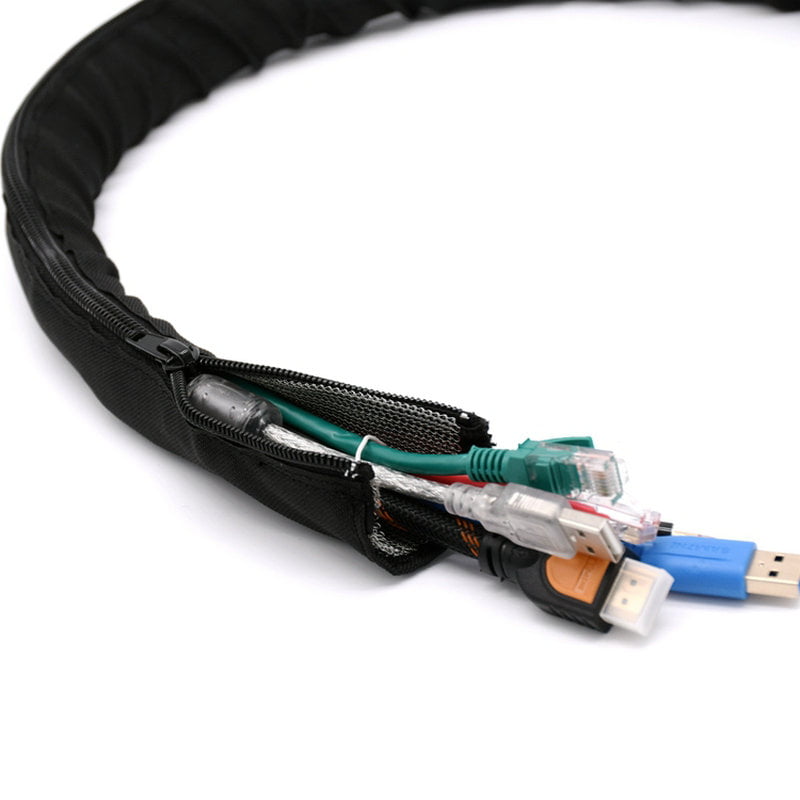

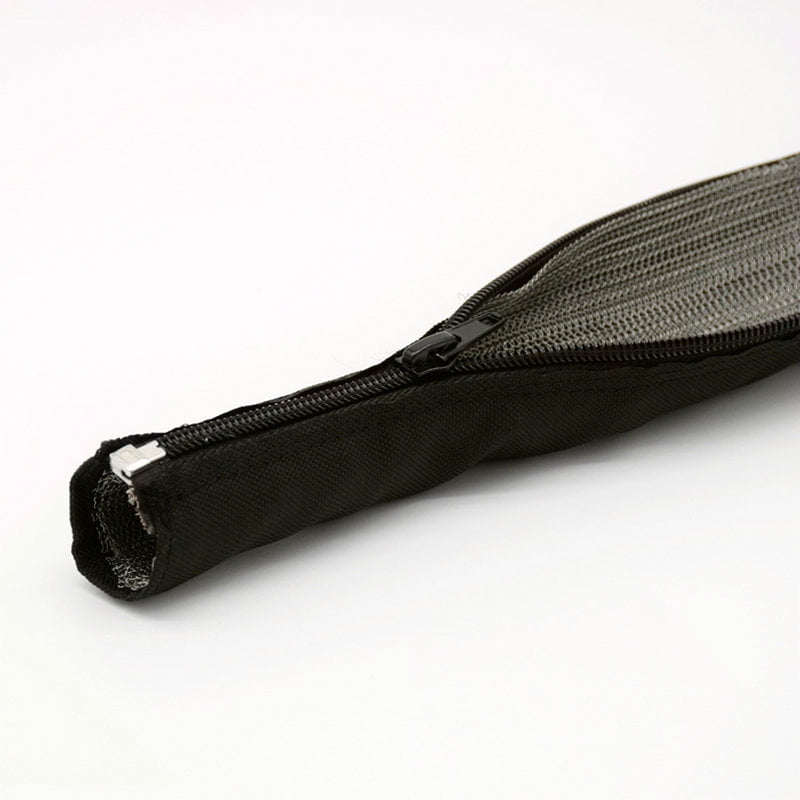

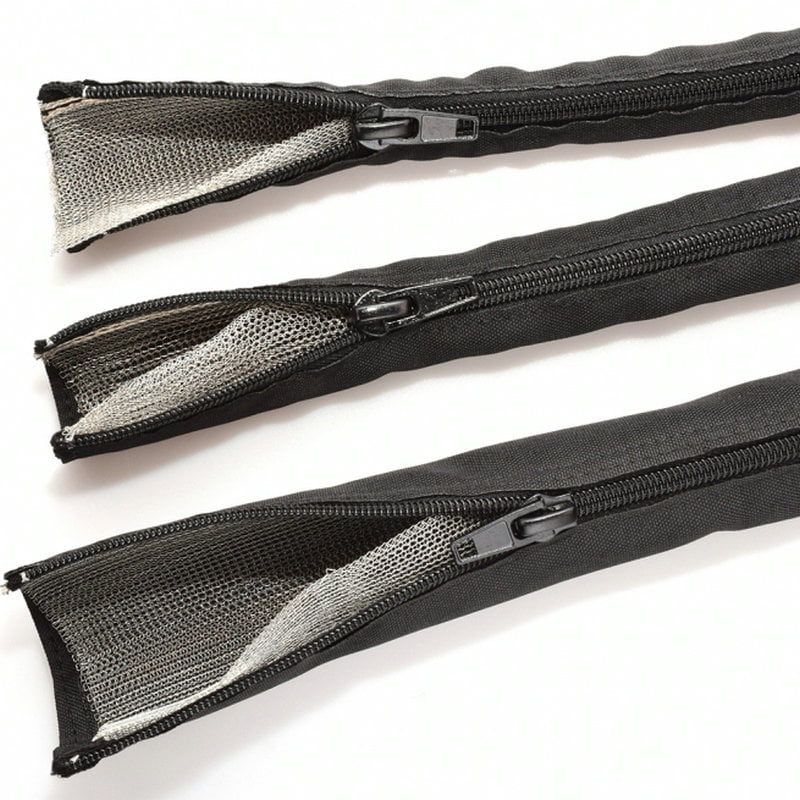

EMI Zipper Shielding Cable Sleeve

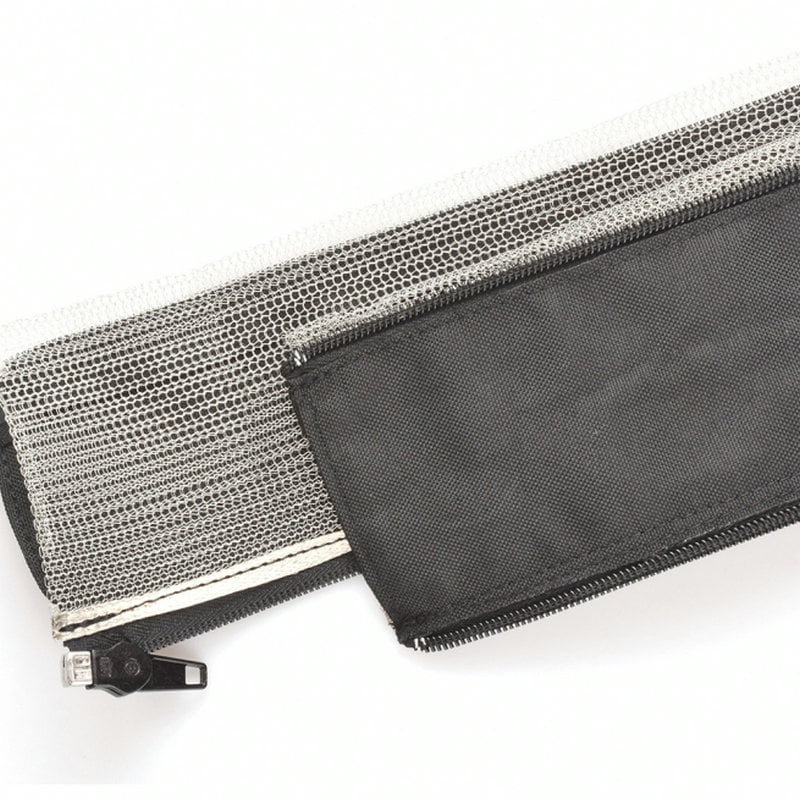

Zipper EMI neoprene cable sleeve is made of tinned copper mesh, flame retardant polyester fabric with a top-grade nylon zipper. It provides excellent low-frequency EMI shielding (500 kHz to 1 GHz).
This style of Emi zipper cable management characteristics of shielding high sensitive electromagnetic interference, noise-reduction, dustproof, and abrasion resistance. With the zipper design, it’s easy to install and remove.
Application
EMI shielding zip-up cable sleeve is a convenient and efficient method of providing EMI/EMP protection to harnesses and wire bundles, mostly used in railway, automotive, aerospace, communication, machinery, medical equipment, electronic industrial, etc.
Specification
| Part No | Size ID(mm) | Max Bundle Dia (mm) | Packing Length (m/spool) |
| MJ-ZECW016 | 16mm | 10~16mm | Customized length |
| MJ-ZECW020 | 20mm | 17~20mm | Customized length |
| MJ-ZECW030 | 30mm | 21~30mm | Customized length |
| MJ-ZECW050 | 50mm | 31~50mm | Customized length |
