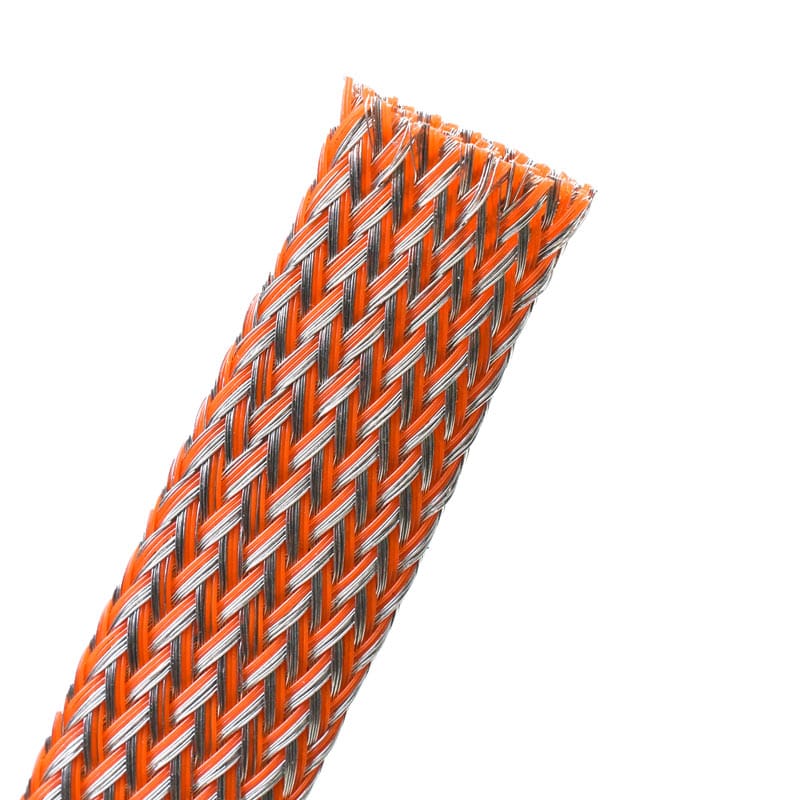

orange PET shielding sleeve

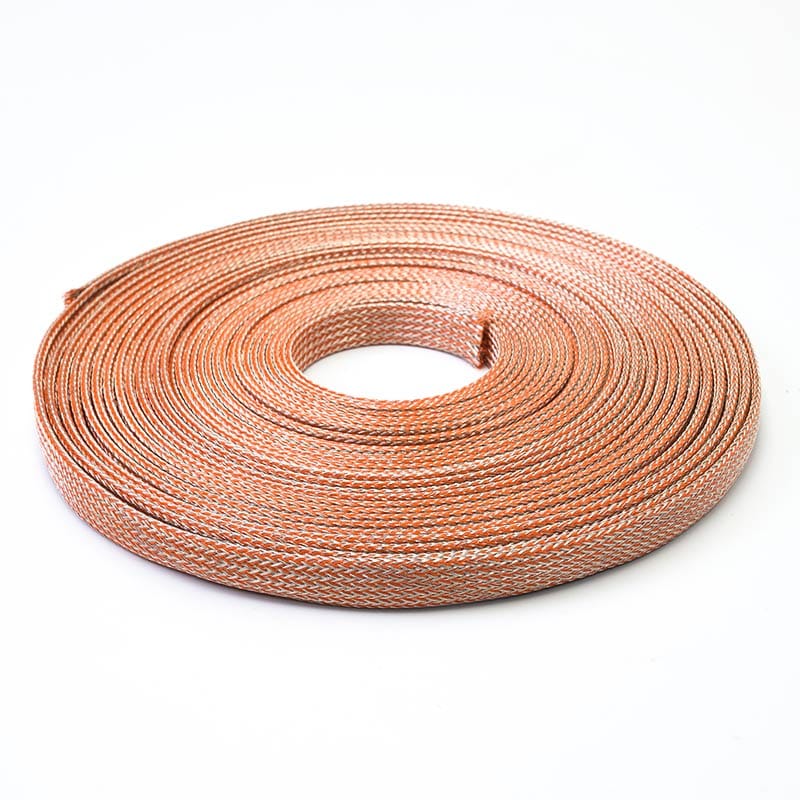

pet shielding braided sleeve

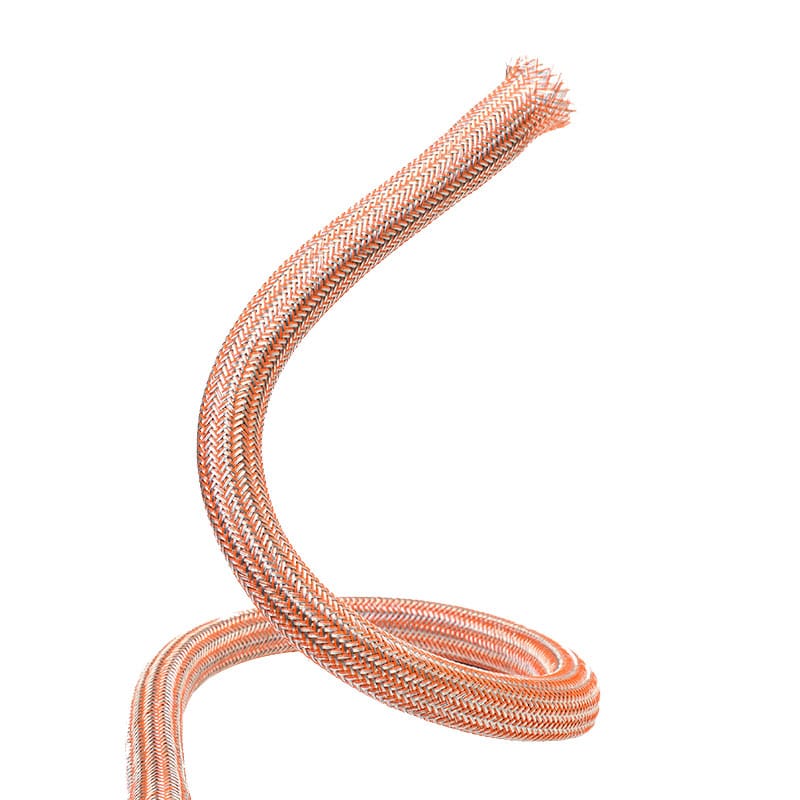

metal copper pet sleeving

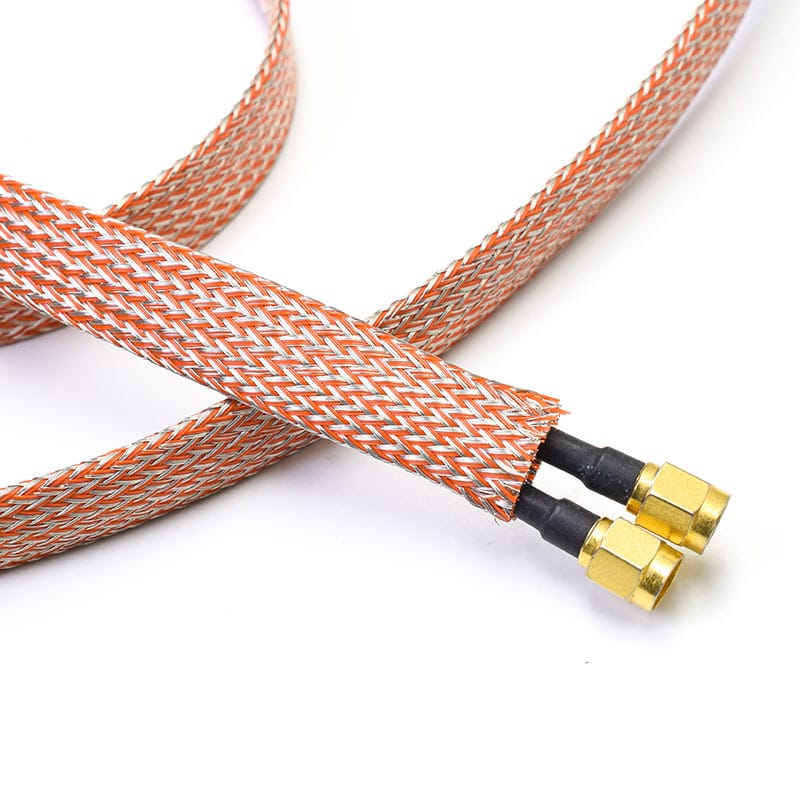

metal Pet braided sleeving

Tinned Copper PET Braided Shielding Sleeve

Tinned copper PET braided sleeving is a high-performance expandable sleeving made from a patented blend of tinned copper wires and orange PET monofilaments. It provides outstanding EMI/RFI shielding, abrasion protection, and mechanical durability. Designed for applications that require both shielding and protection, this sleeving combines flexibility, a decent expansion ratio, and a sleek, professional appearance.

Part No.:

MJ-PCBS-E

Material：

Polyester(PET),Tin-platedcopper

MonofilamentThickness:

PET-0.25mm;TinnedCopper-0.12mm

WorkingTemperature:

50℃~+150℃

MeltPoint:

240+(-)10℃

Flammability:

VW-1

EMIPerformance:

≧60dB(30MHzto1GHz,accordingtoGB30142-2013)

Contact Us



Tinned Copper PET Braided Shielding Sleeve

PET braided shielding sleeve combines the durability of PET monofilaments with the conductive shielding of tinned copper wires. Consequently, this hybrid braided sleeving provides outstanding EMI/RFI shielding and abrasion resistance. Additionally, its sleek, high-tech design makes it an ideal choice for automotive and hybrid/electric vehicle wiring.

it’s unique weave design, this sleeving solution offers both flexibility and a generous expansion ratio. As a result, it allows for effortless installation and adapts seamlessly to various cable sizes. Moreover, it ensures your cables remain well-protected and free from interference, making it a versatile and high-performance choice.

It’s decent expansion ratio and provides dual protection for both internal cable insulation and external components. Additionally, the sleeving is heat-resistant, chemical-resistant, and maintains performance under thermal shocks. The sleek, high-tech design is ideal for applications requiring both functionality and aesthetic appeal.

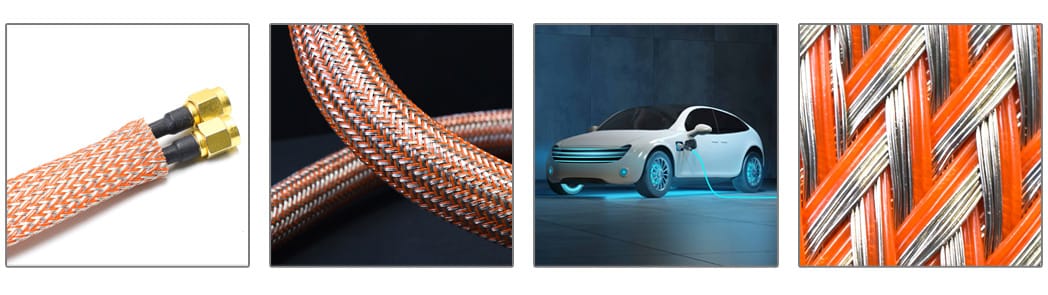

pet shielding sleeve





Product Size

Part NoMoninalSize W( m m )Range of Use ( mm )Tolerance ( mm )Packing Length ( m / spool )
Min ( I )Max ( O )
MJ – PCBS – E0080851 0+ / – 3.01 5 0
MJ – PCBS – E0101071 2+ / – 3.01 5 0
MJ – PCBS – E0121281 6+ / – 3.01 5 0
MJ – PCBS – E015151 02 0+ / – 3.05 0
MJ – PCBS – E018181 22 5+ / – 4.05 0
MJ – PCBS – E020201 43 0+ / – 4.05 0
MJ – PCBS – E02222163 6+ / – 4.05 0
MJ – PCBS – E02525204 0+ / – 4.05 0
MJ – PCBS – E03030205 0+ / – 4.03 0
MJ – PCBS – E03838266 5+ / – 5.03 0
MJ – PCBS – E04545307 9+ / – 6.03 0
MJ – PCBS – E05050338 5+ / – 8.03 0
MJ – PCBS – E06060409 5+ / – 8.03 0





Application

The tinned copper PET braided sleeving is widely used in applications requiring both EMI/RFI shielding and mechanical protection. It is ideal for electric and hybrid vehicles, transformers, aerospace systems, rail transportation, and medical equipment. The sleeving is also suited for automotive wiring, and electromechanical devices where abrasion resistance, heat tolerance, and chemical resistance are essential. Its flexibility and easy installation make it perfect for cable management in high-tech environments that demand reliable shielding and durability.
